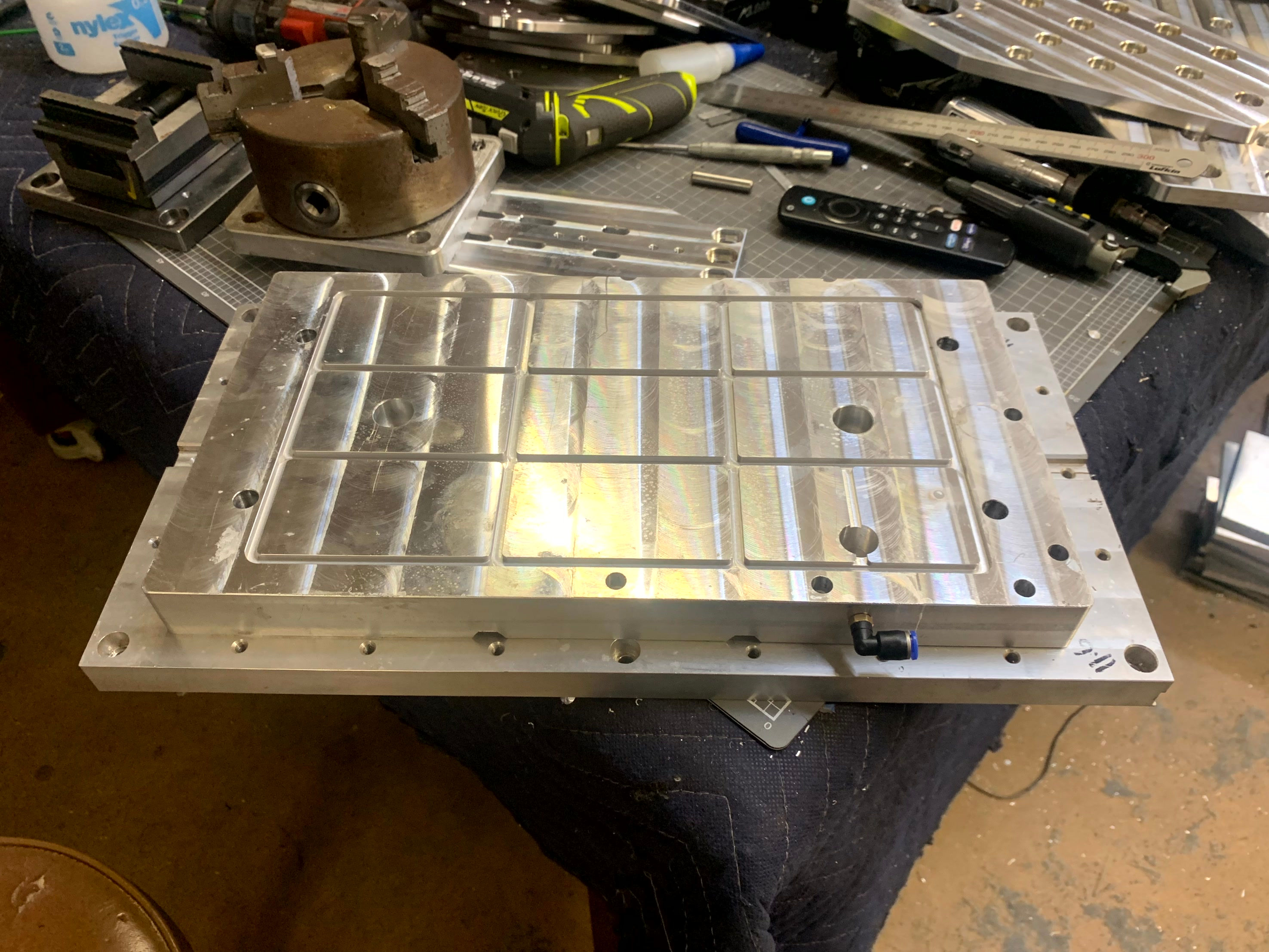

Tomahawk CNC – Modular Vacuum Plate Fixture

The Tomahawk Vacuum Plate Fixture is designed to simplify workholding for flat parts, thin materials, and delicate components. Featuring an internal sealing channel system, the vacuum area can be easily customised—allowing you to isolate only the section you need. Simply insert sealing cord into the channel to outline the shape or size of your workpiece, connect your vacuum source, and you’re ready to machine.

This plate integrates directly with Tomahawk CNC Fixture Plates, allowing fast mounting, repeatable location via dowel pins, and the ability to switch between vacuum workholding and traditional clamping systems in seconds.

✅ Key Features

• Modular sealing channel systemDefine the vacuum zone for each part—no wasted suction and no leaks.

• Compatible with Tomahawk Fixture PlatesDrops in using the fixture plate hole pattern and dowel locations for repeatable setup.

• Ideal for thin or delicate materialsHolds without distortion—perfect for plastics, aluminium sheet, engraving stock, carbon fibre, PCB material, etc.

• Fast setup and teardownChange from one part size to another in seconds—just reposition the sealing cord.

🔧 Ideal For

• Small part machining

• Engraving and profile cutting

• Sheet stock and plate materials

• Prototype and short-run production

🛠️ Benefits

• Eliminates the need for clamps or edge holding

• No bowing or distortion of thin parts

• Perfect for clean perimeter profiling—no tabs required

• Compatible with mills and CNC routers

🇦🇺 Designed & Machined in Australia

Manufactured by Tomahawk CNC — Mid North Coast NSW
